Farm Duty Motors

1 1/2 hp 1800 RPM, 14.0/7.2-7.0 amps, 115/208-230 Volts 60 Hz. Capacitor Start / Capacitor Run Phase NEMA 56 Frame, TENV, Shaft 5/8" Diameter x 1 7/8" Service Factor = 1.3, Overload Protection: Auto Resilient Base, Reversible Rotation, Ball Bearings,...

1/2 hp 1800 RPM, 1.7-1.7/0.85 amps, 208-230/460 Volts 60 Hz. 3 Phase NEMA 56N Frame, TEFC, Shaft 5/8" Diameter x 1 5/8" with short rear shaft having flat Service Factor = 1.0, Overload Protection: Manual No Base, Reversible Rotation, Ball Bearings,...

1/2 hp 900 RPM, 3.7-3.6 amps, 208-230 Volts 60 Hz. PSC (Permanent Split Capacitor) NEMA 56Y Frame, TENV, Shaft 5/8" Diameter x 1 7/8" Service Factor = 1.0, Overload Protection: Auto No Base, Reversible Rotation, Ball Bearings, Class B Insulation 1 Year...

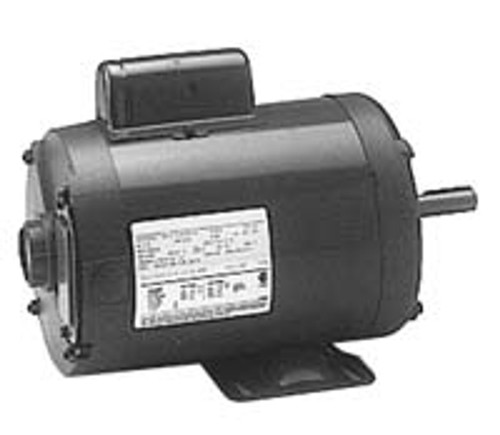

1/2 HP 1800 RPM (1 speed), 8.0/4.0 amps 115/230V Volts 60 Hz Capacitor Start Motor 56 Frame, Rolled Steel, Keyed Shaft 5/8" diameter x 1 7/8" long Service Factor = 1.25, Overload Protection: Auto Rigid Base Mount, Ball Bearings, Class B Insulation,...

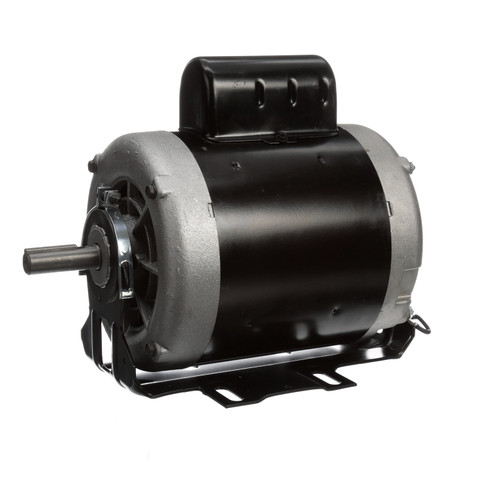

1/3 HP 1700 RPM (1 speed), 3.8/1.9 amps 115/230V Volts 60 Hz PSC Motor 48 Frame, Rolled Steel, Keyed Shaft 1/2" diameter x 2 1/2" long Service Factor = 1.0, Overload Protection: Auto Resilient Base Mount, Ball Bearings, Class B Insulation, Reversible...

1 1/2 HP 1800 RPM (1 speed), 14.4/8.3-7.2 amps 115/208-230V Volts 60 Hz Capacitor Start/Run Motor 56HC Frame, Rolled Steel, Keyed Shaft 5/8" Diameter x 1 7/8" Service Factor = 1.15, Overload Protection: Manual Rigid Base Mount, Ball Bearings, Class B...

3/4 HP 1800 RPM (1 speed), 10.8/5.4 amps 115/230V Volts 60 Hz Split Phase Motor 56 Frame, Rolled Steel, Keyed Shaft 5/8" diameter x 1 7/8" long Service Factor = 1.25, Overload Protection: Auto Rigid Base Mount, Ball Bearings, Class B Insulation,...

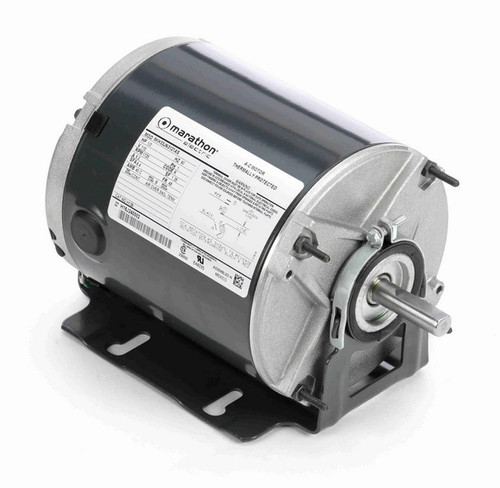

1/3 hp 1800 RPM, 6.2 amps, 115 Volts 60 Hz. Split Phase NEMA 48 Frame, TENV, Shaft 1/2" Diameter x 1 1/2" Service Factor = 1.35, Overload Protection: Auto Resilient Base, Reversible Rotation, Ball Bearings, Class B Insulation 1 Year Manufacture...

1/2 hp 1800 RPM, 5.2/2.7-2.6 amps, 115/208-230 Volts 60 Hz. Split Phase NEMA 56 Frame, TEAO, Shaft 5/8" Diameter x 1 7/8" Service Factor = 1.3, Overload Protection: Auto Resilient Base, Reversible Rotation, Ball Bearings, Class B Insulation 1 Year...

1/3 hp 1800 RPM, 4.1/2.1-2.0 amps, 115/208-230 Volts 60 Hz. Split Phase Start / Capacitor Run NEMA 48 Frame, TEAO, Shaft 1/2" Diameter x 1 1/2" Service Factor = 1.0, Overload Protection: Auto Resilient Base, Reversible Rotation, Ball Bearings, Class B...

1/3 hp 1800 RPM, 4.0/2.0 amps, 115/230 Volts 60 Hz. PSC (Permanent Split Capacitor) NEMA 48Z Frame, TENV, Shaft 1/2" Diameter x 1 1/2" Service Factor = 1.0, Overload Protection: Auto No Base, Reversible Rotation, Ball Bearings, Class B Insulation 1 Year...
