- 2 hp 1800 RPM, 24.0/12.0 amps 115/230V Volts 60 Hz Capacitor Start Motor

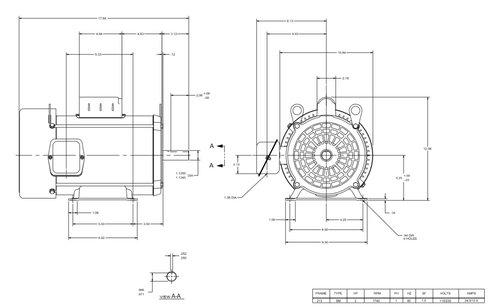

- NEMA 213 Frame, Rolled Steel with Cast Aluminum End Bells, Keyed Shaft 5/8" Diameter x 1 7/8"
- Service Factor: 1.0 Overload protection = None
- Rigid Mount, Ball Bearings, Class F Insulation, Reversible
- 1 Year Manufacture Warranty
For used on air compressors, pumps, and conveyor requiring high starting torque. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan Cooled. AF77
