Washdown Motors

2 hp 1800 RPM, 5.8/2.9 amps 230/460 Volts 60 Hz. 3-Phase Motor NEMA 145TC Frame Keyed Shaft 7/8" Diameter x 2 1/4 Service Factor: 1.15, Overload Protection = None Rigid Base, Reversible, Ball Bearings - Class F Insulation 1 Year Manufacture...

2 hp 1800 RPM, 5.8/2.9 amps 230/460 Volts 60 Hz. 3-Phase Motor NEMA 145TC Frame Keyed Shaft 7/8" Diameter x 2 1/4" Service Factor: 1.15, Overload Protection = None No Base, Reversible, Ball Bearings - Class F Insulation 1 Year Manufacture...

1 hp 1800 RPM, 2.8/1.4 amps, 208-230/460V 60hz. Three Phase Motor NEMA 143TC Frame Keyed Shaft 7/8" Diameter x 2 1/4" Brake Rating Ft. Lbs. = 6 TENV-Totally Enclosed Non Vented Rigid Base/C-Face Mount Service Factor 1.15; Class F Insulation 1 Year...

1 hp 1800 RPM, 3.2-3.2/1.6 amps 208-230/460 Volts 60 Hz. 3-Phase Motor NEMA 143TC Frame Keyed Shaft 7/8" Diameter x 2 1/4 Service Factor: 1.15, Overload Protection = Thermostat No Base, Reversible, Ball Bearings - Class F Insulation 1 Year Manufacture...

2 hp 1800 RPM, 2.3 amps 575 Volts 60 Hz. 3-Phase Motor NEMA 145C Frame Keyed Shaft 7/8" Diameter x 2 1/4 Service Factor: 1.15, Overload Protection = None Rigid Base, Reversible, Ball Bearings - Class F Insulation 1 Year Manufacture Warranty Wash Duty...

2 hp 1800 RPM, 25.2/12.6 amps 115/208-230 Volts 60hz. single Phase Motor NEMA 182T Frame Keyed Shaft 1 1/8" Diameter x 2 3/4" Leeson Washguard Motor Service Factor: 1.15 - overload protection = None - Class F Insulation 1 Year Manufacture...

3 hp 3600 RPM, 7.6/3.8 amps 230/460 Volts 60hz. Three Phase Motor NEMA 182TC Frame Keyed Shaft 1 1/8" Diameter x 2 3/4" Leeson Washguard Motor - Rigid Base - Premium Efficient Service Factor: 1.25 - overload protection = None - Class F...

5 hp 3600 RPM, 12.0/6.0 amps 230/460 Volts 60 Hz. 3-Phase Motor NEMA 184TC Frame Keyed Shaft 1 1/8" Diameter x 2 3/4 Service Factor: 1.25, Overload Protection = None Rigid Base, Reversible, Ball Bearings - Class F Insulation 1 Year Manufacture...

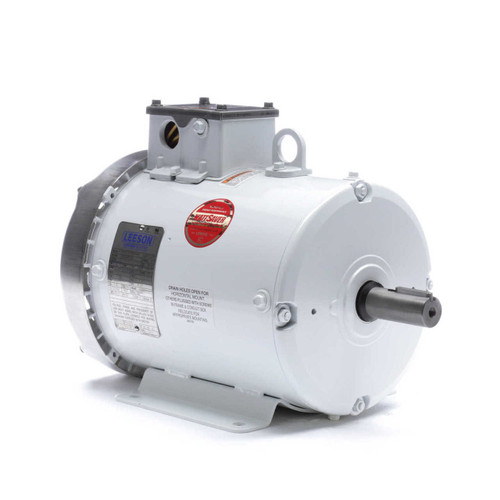

2 hp 1175 RPM, 6.4/3.2 amps, 208-230/460V 60hz. Three Phase NEMA 184TZ Frame, Shaft 1 1/8" x 2.81" TEFC Washdown duty features including shaft seals USDA approved food-safe paint Extra high breakdown torques Service Factor 1.5; No overload...

5 hp 3600 RPM, 13.2- 12.0/ 6.0 amps 575 Volts 60 Hz. 3-Phase Motor NEMA 184JM Frame with JM Shaft 1 1/8" Diameter Service Factor: 1.15, Overload Protection = None Rigid Base, Reversible, Ball Bearings - Class F Insulation 1 Year Manufacture...

5 hp 1800 RPM, 13.8-12.6/ 6.3 amps 208-230/460 Volts 60 Hz. 3-Phase Motor NEMA 184JM Frame with JM Shaft 1 1/8" Diameter Service Factor: 1.15, Overload Protection = None Rigid Base, Reversible, Ball Bearings - Class F Insulation 1 Year Manufacture...

5 hp 1800 RPM, 12.6/6.3 amps 230/460 Volts 60 Hz. 3-Phase Motor NEMA 184TC Frame Keyed Shaft 1 1/8" Diameter x 2 3/4" Service Factor: 1.15, Overload Protection = None No Base, Reversible, Ball Bearings - Class F Insulation 1 Year Manufacture...
