Farm Duty Motors

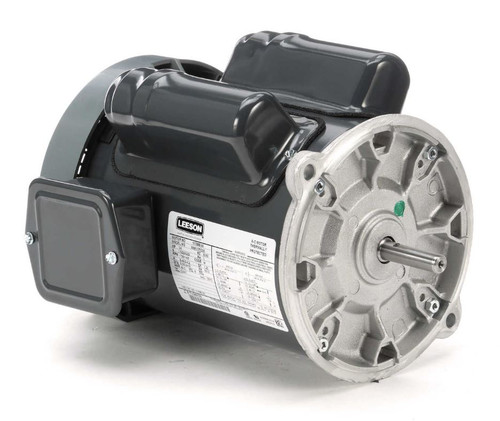

3/4 hp 1800 RPM, 8.4/4.5-4.2 amps, 115/208-230 Volts 60/50 Hz. Capacitor Start/Capacitor Run NEMA 56YZ Frame, TEFC, Shaft 5/8" Diameter x 1 5/8" with short rear shaft having flat Service Factor = 1.25, Overload Protection: Manual No Base, Reversible...

A099946.00 Leeson 1/2 hp 1200 RPM 115/230V 48Z Frame (Rigid Base) TEAO 1-Phase Farm Fan Motor This Leeson 1/2 hp farm fan motor is designed for use in agricultural applications where a reliable, durable motor is required to drive fan blades. It replaces...

1/3 hp 1800 RPM, 5.5/2.8 amps, 115/230 Volts 60 Hz. Capacitor Start/Induction Run NEMA 56N Frame, TENV, Shaft 5/8" Diameter x 1 5/8" with short rear shaft having flat Service Factor = 1.0, Overload Protection: Manual No Base, Reversible Rotation, Ball...

C594V1 Century 1 1/2 HP 1800 RPM 56H Frame 115/230V TEAO Cow Cooler Motor This single-phase motor is designed for belt-driven fans commonly used in farm buildings. It serves as a reliable replacement motor with a Totally-Enclosed Air-Over (TEAO) design,...

    1/2 HP 1800 RPM (1 speed), 5.0/2.5 amps 115/230V Volts 60 Hz PSC Motor    48YZ Frame, Rolled Steel, Keyed Shaft 1/2" diameter x 1 3/8" long    Service Factor = 1.0, Overload Protection:...

FD32EA2D Nidec 1 1/2 HP 1800 RPM (1 speed, 3-Phase) 208-230/460V 56H Frame TEAO Farm Fan Motor This Nidec FD32EA2D motor is a 1 1/2 HP, 1800 RPM, single-speed, three-phase farm fan motor designed for use in poultry and livestock ventilation systems. It...

1/4 hp 1800/1200 RPM, 4.0/2.25 amps, 115 Volts 60 Hz. Split Phase NEMA 48 Frame, TEAO, Shaft 1/2" Diameter x 1 1/2" with 2 flats Service Factor = 1.0, Overload Protection: Auto No Base, Reversible Rotation, Ball Bearings, Class B Insulation 1 Year...

5 hp 1800 RPM, 27.2 amps, 230 Volts 60 Hz. Capacitor Start / Induction Run Phase NEMA 184TZ Frame, DPAO, Shaft 1 1/8" Diameter x 2 3/4" Service Factor = 1.4, Overload Protection: Auto Rigid Base, Reversible Rotation, Ball Bearings, Class F Insulation 1...

1/2 hp 1200 RPM, 5.0/2.5 amps 115/230 Volts 60 Hz. PSC 1-Phase Motor NEMA 48Y Frame Flat Shaft 1/2" Diameter x 2 1/2" Service Factor: 1.0, Overload Protection = Auto Rigid Base, Reversible, Ball Bearings - Class B Insulation 1 Year Manufacture...

1/2 hp 1200 RPM, 6.0/3.0 amps 115/230 Volts 60 Hz. PSC 1-Phase Motor NEMA 56Z Frame Keyed Shaft 5/8" Diameter x 1 7/8 Service Factor: 1.0, Overload Protection = Auto Resilient Base, Reversible, Ball Bearings - Class B Insulation 1 Year Manufacture...

1 hp 1800 RPM, 13.4/6.8-6.7 amps 115/208-230 Volts 60 Hz. Cap Start 1-Phase Motor NEMA 56 Frame with Keyed Shaft 5/8" Diameter x 1 7/8" Service Factor: 1.15, Overload Protection = Manual No Base, Reversible, Ball Bearings - Class B Insulation 1 Year...

1 hp 1800 RPM, 10.8/5.4 amps 115/230 Volts 60 Hz. Cap Start/Cap Run 1-Phase Motor NEMA 56YZ Frame with Keyed Shaft 1/2" Diameter x 1 7/8" Service Factor: 1.0, Overload Protection = Manual No Base, Reversible, Ball Bearings - Class B Insulation 1 Year...
