HVAC Motors

1/16 hp 1100 RPM 3-Speed 115V 0.80 amps Shaft 10.0" x 0.5" x 9.9" Rotation: CCW shaft end 5.0" Diameter Motor case length 3.81" Sleeve bearings Resilient base Mount 5MFD 370V Capacitor REQUIRED (Our...

1/2 hp 1075 RPM 1-Speed 460V 1.3 amps Shaft 2 1/2" x 1/2" Rotation CW shaft end 5.6" Diameter Motor case length 5.81" Terminal block connector for wires Ball Bearings Vertical shaft up 10MFD 370V...

1/4 hp 1625 RPM 1-Speed 575V 0.7 amps 50/60hz. Shaft 1/2" x 3.1" Rotation: CCW shaft end 5.6" Diameter Motor case length 4.8" Sleeve bearings Band Mount 5MFD 370V Capacitor REQUIRED (Our Part...

1 hp 1140 RPM 1-Speed 200-230/460 50/60hz. 3.5-3.3/1.7 amps, three phase Shaft 1/2" x 5.0" Rotation reversible 5.6" Diameter Motor case length 9.53" Ball bearings 1 Year mfg warranty Three Phase...

1694 Nidec | 1/2 hp 1625 RPM 3-Speed 115V; 5.6" Blower Motor This 1/2 horsepower blower motor by Nidec is designed for HVAC applications requiring reliable, multi-speed operation. It serves as a...

3/4 hp 1100 RPM, 4.8/2.5 amps 208-230/460V Volts 60 Hz PSC Motor NEMA 6.5" Dia. Frame, Rolled Steel, Flat Shaft 5/8" Diameter x 6" long Service Factor = 1, Overload Protection: Auto Stud Mount, Ball...

3/4 hp 1075 RPM 4-Speed 115V 12.1 amps Shaft 1/2" x 6.0" Rotation = Reversible 5.6" Diameter Motor case length 5.31" Slevee bearings Resilient rings 7.5MFD 370V Capacitor REQUIRED (Our Part #7...

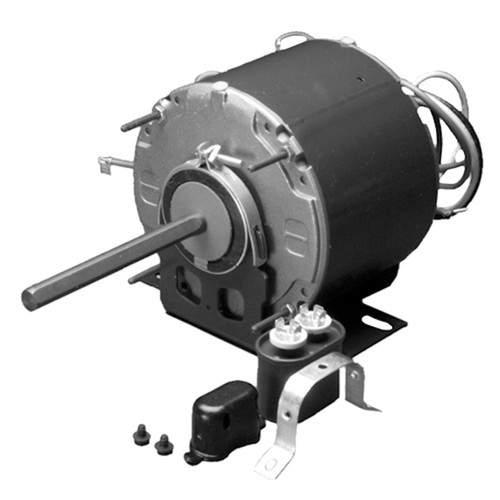

3846 Nidec | 1/4 hp 1075 RPM 1-Speed 230V; 5.6" Condenser Motor This Nidec 1/4 horsepower condenser motor operates at 1075 RPM with a single speed and 230V power supply. Designed for HVAC condenser...

1/3 hp 825 RPM, 1-Speed 208-230V 2.7 amps Shaft 4.5" x 1/2" Rotation = Reversible 5 5/8" Diameter Motor case length 5.8" Ball Bearings 5MFD 370V Capacitor REQUIRED (Our Part #5DV) 1 Year Mfg...

1/2 hp 1075 RPM 1-Speed 230V 3.1 amps Shaft 1/2" x 5" Rotation: Reversible 5.6" Diameter Motor case length 6.0" Ball bearings Resilient Base Mount 7.5MFD 370V Capacitor REQUIRED (Our Part #7.5DV) 1...

1 hp 1080 RPM 1-Speed 200V 5.9 amps Shaft 4.45" x 5/8" Rotation CW shaft end 5.6" Diameter Motor case length 6.0" 68" Leads Ball Bearings 30MFD 370V Capacitor REQUIRED (Our Part #30DV) 1 Year mfg...

8947 Nidec | 3/4 hp 1075 RPM 2-Speed 460V; 5.6" Blower Motor This 3/4 horsepower, 2-speed blower motor is designed for HVAC applications requiring reliable performance and versatility. It serves as a...
