Brake Motors

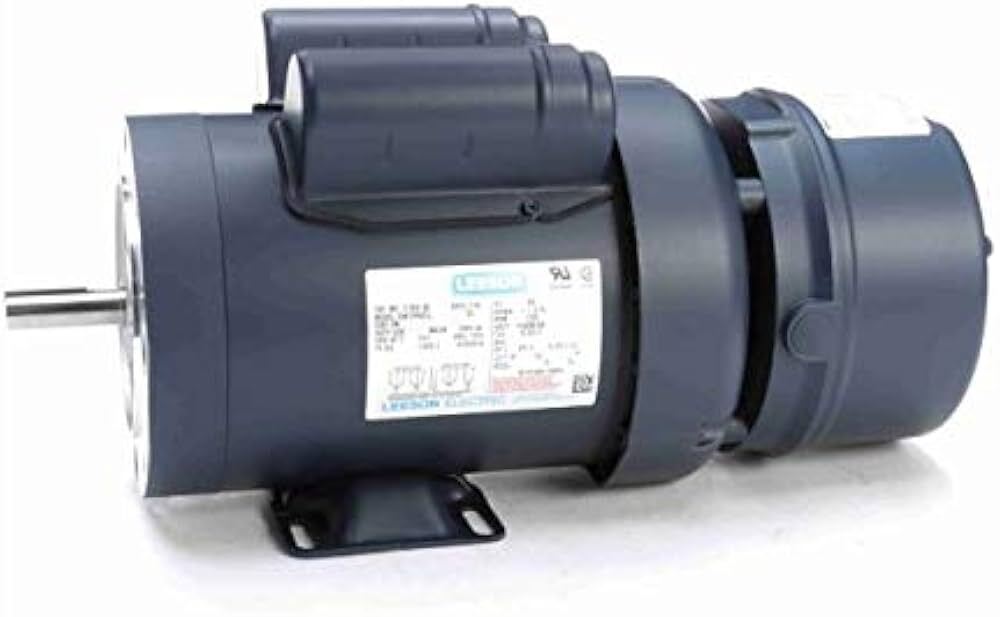

121816.00 Leeson 2 hp 1800 RPM 115/208-230V 145TC Frame (Rigid Base) TEFC 1-Phase Brake Motor This Leeson 2 horsepower brake motor is designed for industrial applications requiring reliable stopping power and consistent performance. It replaces similar...

121815.00 Leeson 1 1/2 hp 1800 RPM 115/208-230V 145TC Frame (Rigid Base) TEFC 1-Phase Brake Motor This Leeson brake motor is a 1 1/2 horsepower, single-phase motor designed for applications requiring reliable braking and controlled stopping. It replaces...

D400 Marathon 1800 RPM 56C Frame 115/208-230V Totally Enclosed Marathon Electric Brake Motor This Marathon electric brake motor is a general-purpose, single-phase motor designed for various industrial and HVAC applications. It replaces motors requiring a...

1 1/2 hp 1800 RPM, 4.6-4.8/2.4 amps 208-230/460 Volts 60 Hz. 3-Phase Motor NEMA 56C Frame Keyed Shaft 5/8" Diameter x 1 7/8" Service Factor: 1.15, Overload Protection = Thermostat No Base, Reversible, Ball Bearings - Class F Insulation 1 Year...

Motor Discontinued 1 1/2 hp 1800 RPM, 15.2/8.2-7.6 amps 115/208-230 Volts 60hz. Capacitor Start/Run Motor NEMA 56 Frame Keyed Shaft 5/8" Diameter x 1 7/8" Service Factor: 1.15, Overload protection = None Reversible, Removable Base and C-Face Mount, Ball...

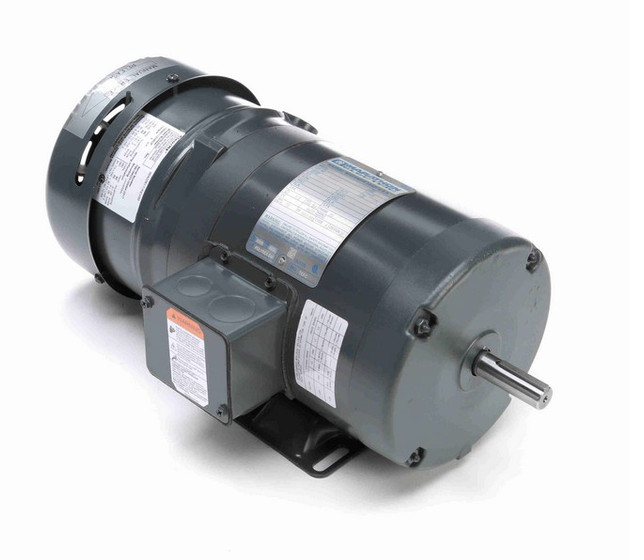

110670.00 Leeson 1/2 hp 1800 RPM 208-230/460V 56C Frame (Rigid Base) TENV 3-Phase Brake Motor This Leeson 3-phase brake motor delivers reliable 1/2 horsepower performance at 1800 RPM, designed for industrial applications requiring controlled stopping. It...

C405 Marathon 3 hp 3 phase 1800 RPM 182TC Frame 230/460V TEFC Marathon Electric Brake Motor This Marathon electric brake motor delivers 3 horsepower with a 3-phase design, ideal for industrial applications requiring reliable and efficient motor...

C406 Marathon 5 hp 3 phase 1800 RPM 184TC Frame 230/460V TEFC Marathon Electric Brake Motor This Marathon 5 hp electric brake motor is designed for industrial applications requiring reliable three-phase power. It serves as a direct replacement for motors...

110671.00 Leeson 3/4 hp 1800 RPM 208-230/460V 56C Frame (Rigid Base) TENV 3-Phase Brake Motor This Leeson 3/4 horsepower, 3-phase brake motor is designed for industrial applications requiring reliable braking and consistent performance. It replaces...

1 1/2 hp 1800 RPM, 5.6/2.8 amps 115/208-230 Volts 60 Hz. 3-Phase Motor NEMA 56C Frame Keyed Shaft 5/8" Diameter x 1 5/8 Service Factor: 1.15, Overload Protection = None Rigid Base, Reversible, Ball Bearings - Class B Insulation 1 Year Manufacture...

1 hp 1800 RPM, 3.2/1.6 amps 230/460 Volts 60 Hz. 3-Phase Motor NEMA 143TC Frame Keyed Shaft 7/8" Diameter x 2 1/4" Service Factor: 1.15, Overload Protection = Thermostat Rigid Base, Reversible, Ball Bearings - Class F Insulation 1 Year Manufacture...

1/2 hp 1800 RPM, 2.4-2.3/1.2 amps 208-230/460 Volts 60hz. 3 phase Motor NEMA 56C Frame Keyed Shaft 5/8" Diameter x 1 7/8" Service Factor: 1.15, Overload protection = None Reversible, Removable Base Mount, Ball Bearings, Class B Insulation 1 Year...
